22Driver Units with Transformer
All DKTEC driver units provide accurate reproduction, high intelligibility and dependable performance in commercial sound, signalling and public address loudspeaker systems. All models are suited for DKTEC reflex horns, epuipped with the industry standard 1-3/8" - male thread pattern. DKTEC driver units are designed for omni-purpose application, from small-medium to high power.
 DKU-60T  |  DKU-75T |  TU-15ML |  TU-25ML/TU-35ML |
Technical Data
| Model | Power(W)
| Impedance
| Freq Response
| ( S P L )
| Dimension
| Height
| Weight
| Rated
| Max
| (0hm)
| (Hz)
| (1W/1M/dB)
| (mm)
| (mm)
| (kg)
| DKU-60T
| 60 | 70 | 167-223- 333-670 | 200-7000
| 109 | 115 | 145 | 2.3 | DKU-75T
| 75 | 85 | 135-167
223-335-670 | 210-7000
| 109 | 114 | 173 | 3.7 | TU-15ML
| 15 | 23 | 670-1K-2K | 250-7000
| 107 | 109 | 122 | 1.05 | TU-25ML
| 25 | 35 | 400-600-1K | 250-6000
| 108 | 144 | 134 | 1.8 | TU-35ML
| 35 | 45 | 200-290-400 | 180-6000
| 109 | 110 | 172 | 2.6 |
|
| |
| |

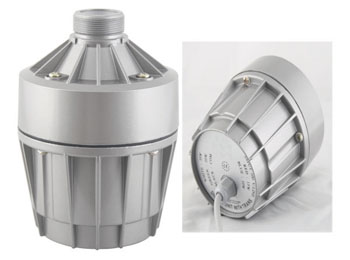

| |  | | Model : | DKU-35ML DKU-60ML | | | Power capacity: 35W 70V-100W Impedance: 280 ohm Frequency range: 200-4kHz Coupling: 13/8"-18N screw Throat diameter: 1" Voice coil diameter: 2" Outer dimension: Ø108X152mm Flange: Aluminium Rer cover: Aluminium Magnet : NdFeB Diaphragm: Phenolic Voice coil material :Copper Voice coil former:Kapton Build-in transformer "ML" means with TAP Switch | | ------------------------------------------------------------------------------------------------------------------------------------------------- | |

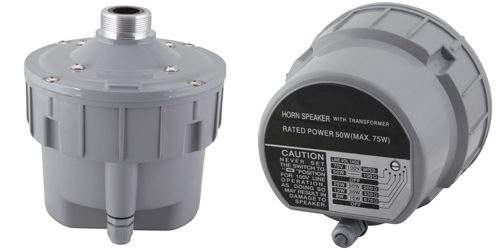

| | Model : | DKU-30T/ DKU-50T | | | | Technical data | DKU-30T | DKU-50T | | Load rating | 30 W | 50 W | | Transformer tappings | 30-15-10 W(100V) | 50-30-15 W(100V) | | �� | 30-15-7.5-5 W(70V) | 50-25-15-7.5 W(70V) | | Frequency range | 300Hz-6KHz | 300Hz-6KHz | | SPL(@1W/m)* | 105 dB | 107 dB | | Protection type* | IP 56 | IP 56 | | Dimension Ø*D(mm) | Ø138*145mm | Ø138*145mm | | Material,Colour | Plastic / Alu , grey(RAL7042) | | |
